Direct answer: An LED strip failure is rarely caused by the strip alone. Flicker, dark sections, dim ends, color shift, overheating, adhesive release and moisture damage can originate in the power supply, controller, wiring, connectors, thermal path, sealing method or installation surface. The fastest way to diagnose a project is to separate the system into stages, measure each stage under load and compare the failed area with a known-good section. Do not replace parts at random: first identify whether the fault follows the power source, the control channel, the cable run, a connection or the strip segment.
This guide is written for lighting designers, electrical contractors, system integrators, distributors and B2B buyers working with low-voltage LED strip product options in retail, hospitality, architectural, display and commercial interior projects. It explains a repeatable troubleshooting process without assuming that one voltage, cable size, driver margin, mounting method or protection level is suitable for every model.
Start With Safety and the Complete System
Separate mains-side work from low-voltage diagnostic work. Mains wiring, protective devices and fixed electrical installations should be inspected by a qualified person under the rules applicable to the project location. On the low-voltage side, isolate power before touching conductors, connectors or cut points. Do not continue operating a system that shows scorching, melted insulation, an unusual smell, water inside electrical connections or repeated protective-device operation.
A typical installation may contain a mains supply, an LED driver or constant-voltage power supply, a dimming interface, a low-voltage controller, extension cable, connectors, solder joints, the LED strip, an aluminum profile, a diffuser and sealed terminations. A symptom at the strip can be produced by any earlier link in that chain.
Use a Symptom-to-Cause Troubleshooting Map
| Observed symptom | First checks to make |
|---|---|
| The whole run is off | Input power, driver output, polarity, controller output, protection devices and the first connection |
| The strip flickers or pulses | Driver stability, dimmer compatibility, controller settings, loose joints, overload and voltage at the strip while operating |
| The far end is dimmer | Voltage drop, feed-point layout, cable resistance, connector resistance and total load |
| Only one section is dark | Cut point, copper pads, solder joint, connector alignment, damaged component and local polarity |
| Color or brightness is uneven | Voltage at each feed, channel balance, mixed production batches, operating temperature, diffuser and viewing geometry |
| The strip becomes unusually hot | Supply voltage, load, thermal path, enclosure, ambient temperature and contact with the mounting profile |
| The strip detaches from the surface | Surface contamination, roughness, moisture, insufficient pressure, thermal cycling and suitability of the adhesive for the substrate |
The table is a starting point, not a diagnosis. Record the symptom, when it occurs and whether it affects one run, one control channel or every run supplied by the same equipment.
A Repeatable Five-Step Diagnostic Method
1. Document the installation before changing anything

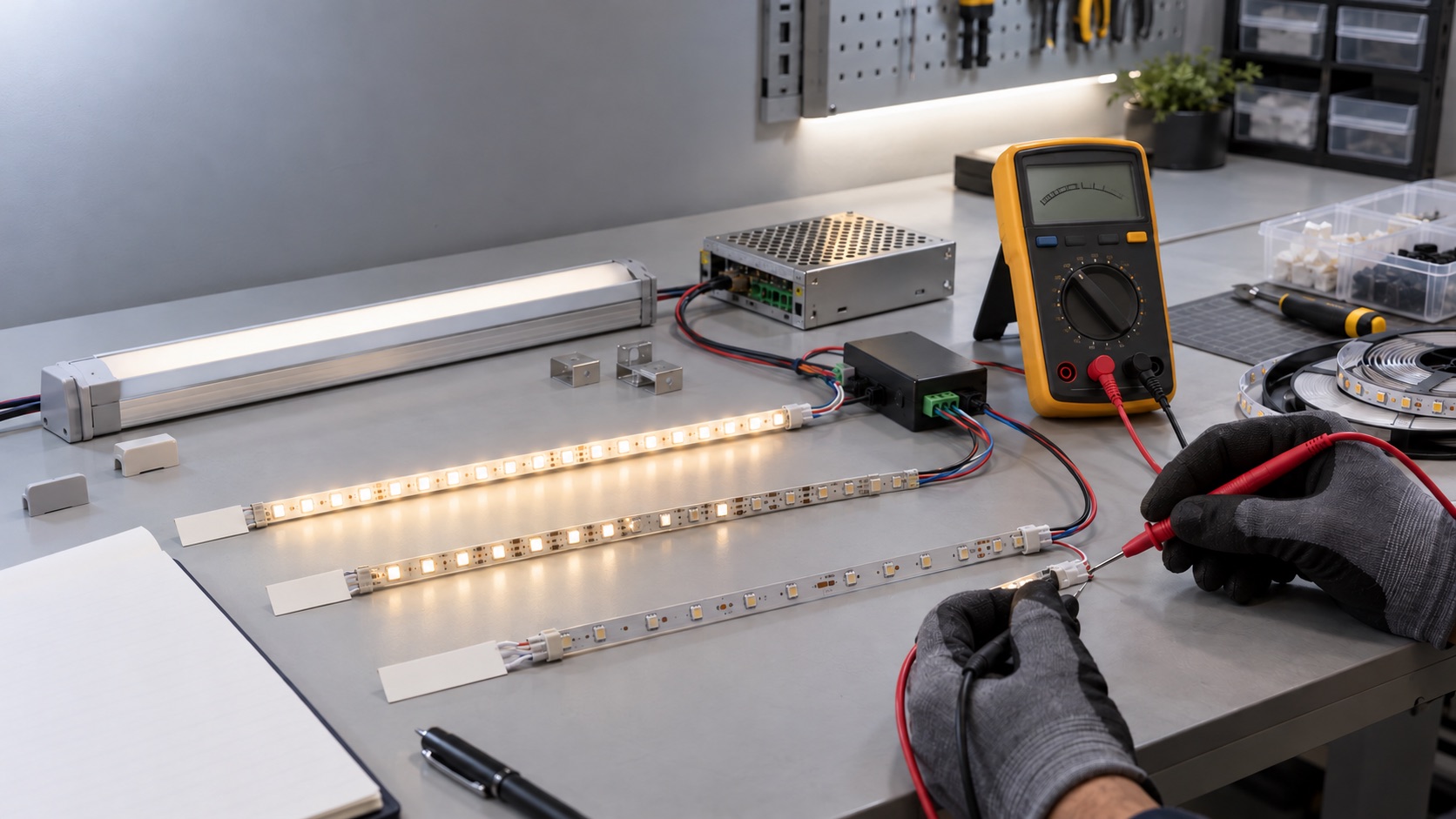

Photograph the driver label, controller terminals, feed points, connectors, cut ends and the failed area. Record the strip voltage, color configuration, run lengths, cable routes, control method, installation profile and environmental exposure. This prevents an intermittent fault from disappearing without evidence after components are moved.
2. Divide the system into functional blocks
Test the power supply, controller, wiring and strip as separate blocks. Where safe and compatible, compare the suspect strip section with a known-good output or compare a known-good strip sample with the suspect output. If the symptom moves with the controller channel, investigate the control path. If it remains at the same physical section, investigate the local wiring, joint or strip.
3. Measure under load, not only with the strip disconnected
An unloaded voltage reading may look normal even when a high-resistance joint, undersized conductor or unstable supply creates a problem during operation. Measure at the power supply output, controller output, beginning of the run and the affected end while the system is operating in the condition that produces the fault. Use the selected product and equipment data sheets as the acceptance reference.
4. Change one variable at a time
Do not simultaneously replace the power supply, controller and strip. A controlled substitution reveals which block causes the symptom and avoids hiding an installation problem that could damage the replacement.
5. Verify the repaired assembly in its real operating condition
Test at the intended brightness, color mode, duty cycle and ambient condition. Inspect connectors, terminations and mounting contact again after the assembly has reached a stable operating temperature. A bench test at low brightness may not reveal a fault that appears at full load.
Why Does an LED Strip Flicker?
Possible causes include an unstable or incompatible driver, a dimmer or controller that does not match the selected equipment, a loose connection, excessive load, poor supply quality or a control signal problem. Flicker that appears only at low brightness often points toward dimming compatibility or low-end control behavior. Flicker on one color channel can indicate a channel-specific connection or controller issue. MEAN WELL's LED power-supply technical Q&A also illustrates why power topology, input conditions and output ripple may need to be considered rather than blaming the LED load alone.
Check whether the power supply is intended for the load architecture, whether the control method is applied on the correct side of the driver and whether all components in the chain are compatible. The Leomay guide to LED strip dimming and control explains why PWM, 0–10V, DALI, DMX and phase-cut control cannot be treated as interchangeable inputs.
Do not assume that replacing the strip will solve flicker. First test a known-good compatible load on the same output and the suspect strip on a known-good compatible output. This comparison helps separate a strip fault from a supply or control fault.
Why Is the Far End Dimmer?
A long run draws current through the resistance of the PCB conductors, cables, connectors and joints. The resulting voltage drop can reduce brightness or change color balance toward the end of the run. The effect depends on the selected strip, voltage, power, conductor path, run length, feed arrangement and connection quality; there is no universal maximum length for all LED strips.
Measure voltage at the beginning and end under load. Compare parallel feed options, shorter branches or additional feed points as permitted by the selected product and system design. The detailed voltage-drop and power-supply sizing guide explains the relationships among power, current, resistance and feed layout. A published Philips LED strip design guide likewise presents power-supply, parallel-connection and handling decisions as model-specific installation considerations.
Why Does Only One Section Stop Working?
A single dark section suggests a local discontinuity or component-level problem. Inspect the nearest permitted cut points, copper pads, solder joints and connectors. Confirm that a clip connector contacts the correct pads and that multi-channel strips have not been shifted by one pad. Look for creases, punctures, damaged components, cracked solder joints or a cut outside the permitted mark.
If a section failed after installation, also ask what mechanical stress was applied. Tight bends, twisting, repeated flexing, pulling through a channel or pressing directly on components can damage a flexible circuit. Do not repair or bridge a section unless the method is allowed for the selected product and the final insulation, polarity and environmental protection can be restored.
Why Do Color and Brightness Look Uneven?
Uneven appearance can come from electrical, optical or production variables. Electrical causes include unequal voltage at feed points and different resistance between channels. Optical causes include diffuser distance, profile geometry, reflective surfaces and viewing angle. Product causes may include mixing different specifications or production batches. Operating temperature can also change LED output and color.
Compare samples under the same supply, controller, profile, diffuser and ambient condition. For white-light projects, define the required CCT, CRI and color-tolerance criteria before ordering. For tunable-white or RGB/RGBW systems, verify channel mapping and calibration before concluding that the LEDs themselves are inconsistent.
Why Does an LED Strip Overheat?
Possible causes include incorrect supply voltage, excessive electrical load, inadequate heat transfer, poor contact with the mounting surface, high ambient temperature or installation inside a confined space. Heat can accelerate lumen depreciation, color change, adhesive deterioration and material aging, so unusual temperature should be treated as a system warning.
Check the strip against its data sheet, verify the power source and inspect how the PCB contacts the mounting surface. An aluminum profile can help spread heat, but it does not correct an electrical mismatch and is not automatically suitable for every power level or environment. See the Leomay guide to LED strip thermal management and aluminum profiles for a project-level evaluation method.
Why Does the Adhesive Backing Release?
Adhesive performance depends on the strip backing, substrate, contamination, surface energy, roughness, moisture, application pressure, temperature and time. Dust, oil, fingerprints, condensation and porous or textured surfaces can prevent full contact. Heat and repeated expansion can then lift the strip even if it initially appeared secure.
Prepare and test the actual substrate rather than relying on a generic instruction. The 3M surface-preparation guidance emphasizes clean, dry, unified surfaces and suitable application pressure, while also noting that some materials need additional preparation. For commercial installations, use mechanical retention or an appropriate profile where the project risk cannot be controlled by pressure-sensitive adhesive alone.
Why Does Moisture Damage Appear in a Protected Strip?
The rated strip is only one part of the protection system. Cut ends, connectors, cable entries, solder joints, end caps, controllers and power supplies can become the weakest point. Field cutting or re-termination may change the condition represented by the original product rating. Condensation, cleaning chemicals, UV exposure, salt and thermal cycling are additional variables that an IP code alone does not fully describe.
Inspect the complete installed assembly and identify where water or vapor could enter or accumulate. Confirm the selected model, termination method and documentation for the target market and application. The LED strip IP rating guide explains why IP20, IP65, IP67 and IP68 should not be interpreted as universal installation guarantees.
Procurement Checks That Prevent Repeat Failures
A useful quotation or sample review should describe the complete system, not just request “the same LED strip.” Provide:
application and installation drawing or site photos;
indoor or outdoor exposure, cleaning method and moisture conditions;
selected voltage, total power and branch lengths;
strip type, PCB width, color or CCT, CRI and color configuration;
driver, controller and dimming protocol;
cable lengths, feed points, connectors and termination method;
profile, diffuser, mounting substrate and available ventilation;
target market, required certification documentation and applicable project rules;
quantity range and whether a representative assembly will be evaluated.
Certification documentation, including UL, CE, RoHS and FCC documentation, is available across many Leomay product models; availability must be confirmed for the selected specification and target market. A document issued for one model should not be assumed to cover another construction or configuration.
Frequently Asked Questions
Can I identify a failed LED strip with a visual inspection alone?
Not reliably. Visual evidence can reveal damaged pads, discoloration, moisture or loose joints, but voltage, polarity and control problems may leave no visible mark. Combine inspection with measurements under load and controlled substitution.
Why does my LED strip work at first and then start flickering?
The fault may appear as the system warms up or reaches a particular load or dimming level. Check connection resistance, driver and controller compatibility, thermal conditions and output stability in the operating state that produces the flicker.
Why is an LED strip bright near the power supply and dim at the end?
Voltage drop is a common cause, but a high-resistance connector or joint can create a similar pattern. Measure both sides of each connection and compare the beginning and end of the run under load.
Can I solve overheating by adding an aluminum profile?
An appropriate profile may improve heat spreading, but it cannot correct excessive voltage, an unsuitable driver, poor PCB contact or an enclosure with insufficient heat rejection. Diagnose the electrical and thermal system together.
Why does an RGB or RGBW strip show the wrong color?
Possible causes include incorrect channel order, a missing channel, unequal voltage, a poor common connection or a controller configuration error. Verify the wiring map and test each channel independently before replacing the strip.
Can a connector be the cause even when it looks secure?
Yes. A connector may be mechanically closed but electrically misaligned, contaminated or unable to maintain sufficient contact under load. Measure across the joint and inspect pad alignment, conductor condition and compatibility with the selected strip.
Should I replace the driver or the LED strip first?
Neither should be replaced first without evidence. Use a known-good compatible load and output to determine whether the symptom follows the driver/control path or remains with the strip and its local wiring.
What information should I send for troubleshooting or a replacement review?
Send the product or model reference, voltage, driver and controller details, wiring diagram, run lengths, feed points, installation environment, photos or video of the symptom, voltage measurements under load, target market, required documentation and quantity range.
Diagnose the System Before Replacing the Strip
A professional troubleshooting process follows the evidence from the power input to the failed area. It distinguishes electrical supply, control, wiring, connection, thermal, optical, mechanical and environmental causes. This reduces unnecessary replacement and helps prevent the same failure from returning in the next installation.
Planning a new project or reviewing an installation problem? Send Leomay the application, selected strip or specification, voltage, driver and controller, run lengths, wiring and feed layout, profile and mounting method, environmental exposure, symptom evidence, target market, required documentation and quantity range. Leomay can review relevant product options and compatibility requirements for the selected model; final suitability and document availability must be confirmed for the specific specification and destination market.
