Direct answer: An aluminum profile can improve LED strip thermal management by giving heat a larger path to spread into the surrounding air, but it is not a universal cure for overheating. The result depends on the selected strip, watts per metre, drive level, contact between the strip and profile, profile geometry, airflow, ambient temperature, diffuser, enclosure and operating schedule. Commercial buyers should therefore evaluate the strip, profile, driver, control method and mounting condition as one assembly, then test a representative installation before approving a project specification.
Low-voltage LED strips convert electrical input into both light and heat. The heat must move away from the LED packages and flexible circuit board, through the mounting interface and into the surrounding structure or air. If any part of that path is weak, the strip can operate hotter than expected even when an aluminum channel is present.
Temperature matters because LED output, color behavior, electronic components, adhesives and encapsulating materials can all be affected by operating conditions. The U.S. Department of Energy explains that LED performance and reliability depend on thermal management at system level, not only on the LED package. Its LED technical overview and LED Systems Reliability Consortium are useful background references for this principle.
This does not mean that every strip needs the same profile or that one surface-temperature limit applies to every product. The correct decision must be based on the selected model, its technical data, the installation and the project requirements.
The first part of the thermal path is inside the strip. LED package design, component density, circuit layout, current distribution and the flexible PCB all influence how concentrated the heat becomes. Two strips with similar power labels can behave differently because their construction and application conditions are not identical.
The back of the strip must make consistent contact with the mounting surface. Dust, oil, uneven adhesive, wrinkles, air gaps or a curved surface can reduce heat transfer. The adhesive is therefore not only a fixing detail; it is part of the practical thermal interface.

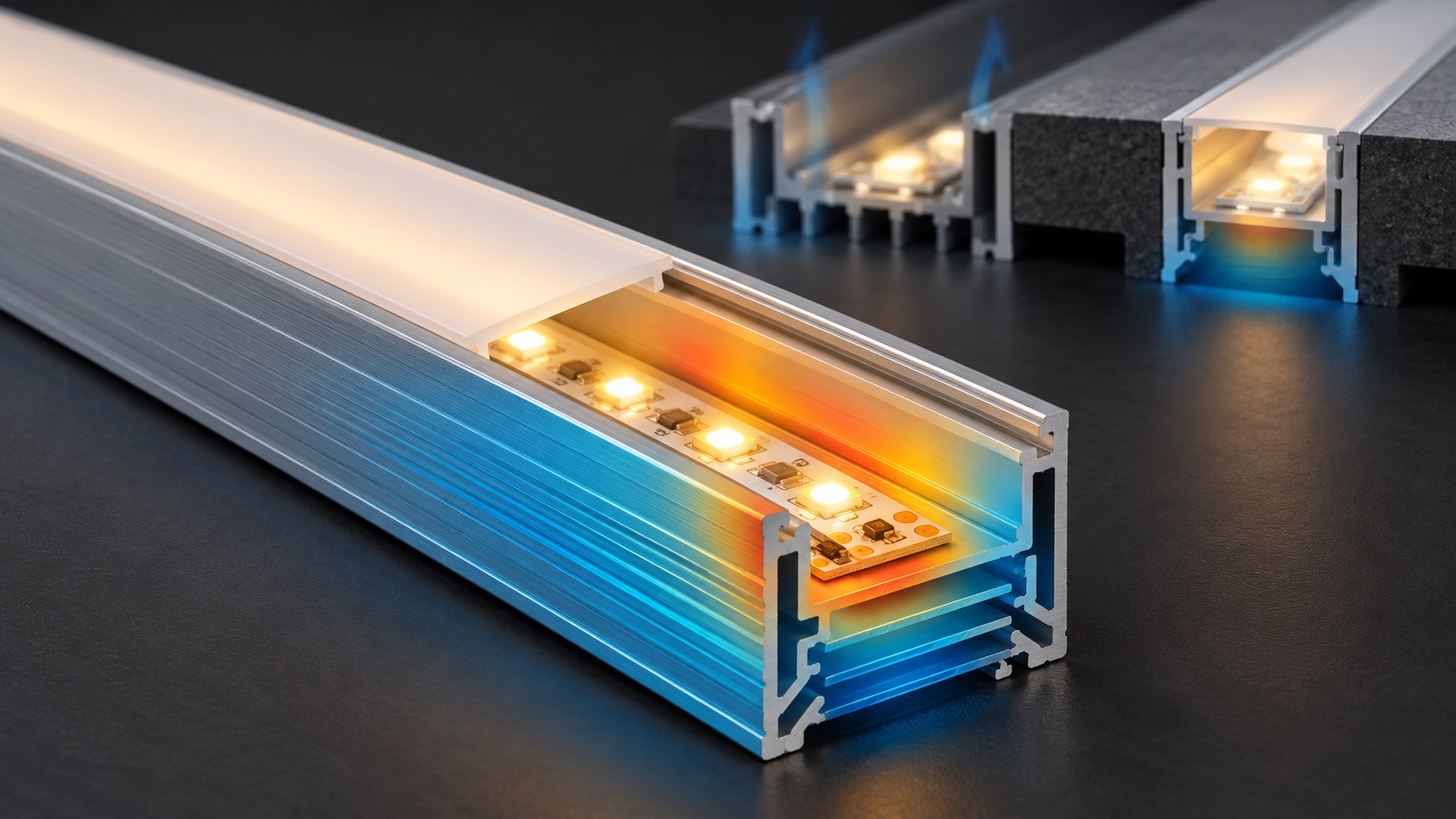

An aluminum profile spreads heat over a larger area. That heat still has to leave the profile by convection and radiation. A profile exposed to room air behaves differently from the same profile enclosed inside insulation, a sealed cabinet or a narrow recess with little air movement.
Watts per metre is a useful starting point, but the installed load, supply voltage at the strip, dimming level and control pattern also matter. Dynamic or multi-channel strips may not operate all channels at full output continuously, while another application may run at its maximum level for long periods. Thermal evaluation should reflect the intended operating case rather than a generic label.
A strip installed in a conditioned interior starts from a different ambient temperature than one used in a hot display cabinet, ceiling cavity or exterior enclosure. Daily operating hours and the duration of high-output operation also affect the stabilized condition that should be evaluated.
A diffuser changes the optical result and can also change airflow around the strip. Protective coatings, silicone encapsulation, end caps and sealed cable entries alter the complete assembly. None of these details should be assessed in isolation. For wet or outdoor projects, also review the LED strip IP rating guide, because ingress protection and thermal management are separate requirements that interact in the final installation.
Thermal symptoms should not be confused with voltage-drop symptoms. Uneven brightness along a run may be caused by conductor resistance or feed arrangement rather than insufficient profile size. Use the voltage drop and power supply sizing guide to evaluate the electrical path separately.
A suitable profile can spread heat, support a straighter installation, protect the strip from incidental contact and provide a controlled optical surface for a diffuser. It can also improve serviceability when the profile, end caps and mounting accessories are planned together.
However, an aluminum channel cannot compensate for every design error. It cannot correct an incompatible driver, excessive loading, poor electrical connections, blocked airflow or a strip that is not properly bonded to the profile. It also does not automatically turn an assembly into a certified luminaire or an IP-rated system. Those claims require evaluation of the relevant complete product and documentation.
Buyers can review Leomay's aluminum LED profile options together with the selected LED strip options, but compatibility must be confirmed by actual dimensions and project conditions.
| Project condition | What to evaluate |
|---|---|
| Open interior accent lighting | Strip power, contact with the profile, visible finish, airflow and service access. |
| Shallow decorative line | Internal width, profile depth, diffuser clearance, LED pitch, dot visibility and available surface area. |
| Recessed cabinet or joinery | Cavity temperature, surrounding material, ventilation, cable routing and whether the profile can release heat into the room. |
| Sealed or outdoor assembly | Protection of every joint and entry point, drainage, solar exposure, ambient range and the thermal effect of sealing materials. |
| High-output or dense LED layout | Actual maximum operating mode, profile mass and surface area, mounting contact, driver loading and representative thermal testing. |
| Long continuous visual line | Thermal design plus voltage drop, feed points, expansion, straightness, connector access and maintenance strategy. |
This table is a decision framework, not a product rating. Final suitability depends on the exact strip, profile and installation.
Do not select a profile from the nominal PCB width alone. Waterproof coatings, silicone sleeves, solder joints and connectors can increase the finished dimensions. Confirm internal profile width and clearance at connections, corners and cable exits.
Profile depth, LED pitch, diffuser transmission and viewing distance influence whether individual points remain visible. A deeper channel may improve diffusion, but the optical choice must also be checked against available space, light output and thermal behavior. The COB vs SMD LED strip guide explains why source construction also affects the appearance of a continuous line.
A larger profile often offers more area for heat spreading, but size alone is not enough. A substantial extrusion hidden in an insulated cavity may perform differently from a smaller profile mounted openly on a thermally favorable surface. Compare the complete installed geometry.
Surface-mounted, recessed, corner and suspended profiles expose different areas to the air. Ask whether surrounding panels trap heat, whether ventilation paths remain open and whether nearby heat sources affect the local ambient temperature.
The diffuser must provide the required appearance without preventing installation or service. End caps and cable entries should fit the wiring plan. For long projects, the ability to replace a strip section or reach a connector may be as important as the initial visual result.
Testing the strip loose on a workbench: a temporary open-air test does not represent the final recessed or sealed installation.
Leaving air gaps under the strip: poor contact interrupts the intended heat path into the aluminum.
Choosing only by outside appearance: a profile can look suitable while its internal width, depth or accessories do not match the selected strip.
Mounting directly on a heat-sensitive surface without evaluation: wood, plastic, painted panels, glass and plasterboard have different mechanical and thermal behavior.
Closing every gap in an enclosure: sealing can be necessary for protection, but it can also reduce heat exchange and change the stabilized temperature.
Ignoring the driver and wiring: an electrical mismatch, poor termination or voltage drop cannot be solved by a larger profile.
Thermal validation should reproduce the actual project as closely as practical. Use the selected strip, profile, diffuser, end caps, adhesive or clips, cable entry, driver, controller and mounting cavity. Operate the assembly at the intended worst-case mode until readings stabilize, and record the ambient temperature, measurement location, operating mode and installation details.
The acceptance criteria should come from the selected product documentation, component limits, project specification and applicable requirements. Avoid relying on one universal test duration, one profile size or one surface-temperature threshold for all strips. If the project changes from open to recessed, from indoor to sealed, or from intermittent to continuous operation, repeat the relevant evaluation.
European and North American projects may apply different electrical, building, fire, accessibility and installation requirements. An aluminum profile is a component of the installation; it does not by itself establish that the completed assembly meets a particular certification, wet-location designation or luminaire standard.
UL, CE, RoHS and FCC documentation is available across many Leomay product models, but availability and relevance must be confirmed for the selected model, specification and target market. Buyers should identify the destination market and required documents before quotation or sample approval so that the review is tied to the intended product configuration.
Provide the following information so the relevant strip and profile options can be reviewed:
application and installation location;
indoor, damp, outdoor or sealed environment;
drawing, section detail or site photos;
selected strip model or required light output and effect;
voltage, watts per metre and total run arrangement;
finished strip width, connector and cable-entry dimensions;
surface, recessed, corner or suspended mounting method;
profile width and depth limits;
diffuser appearance and dot-free expectations;
dimming or control method and expected maximum operating mode;
ambient condition, enclosure and operating schedule;
target market, quantity range and required documentation.
No. The need depends on the selected strip, power density, mounting surface, ambient condition, operating schedule and product instructions. A profile is commonly evaluated for heat spreading, alignment, protection and optical finishing, but the correct solution is application-specific.
No. It improves the thermal path only when the strip makes good contact and the profile can release heat. Excessive loading, incompatible power equipment, poor wiring, sealed cavities or high ambient temperature can still produce an unacceptable result.
Heat has moved into the profile, which is part of its purpose, but the final temperature depends on how quickly the whole assembly releases that heat. Evaluate stabilized temperatures against the selected product documentation rather than judging only by touch.
Not automatically. More material and surface area may help, while depth may improve diffusion, but installation geometry, airflow, contact, available space and accessories also matter. The best profile is the one validated with the intended strip and mounting condition.
They can. A diffuser, coating, silicone sleeve, end cap or seal changes airflow and the path through which heat leaves the assembly. Compare the complete configuration rather than extrapolating from an unsealed bare strip.
Possibly, but suitability must be evaluated for the selected strip, surface, adhesive, temperature and project rules. These materials do not behave like aluminum, and some surfaces may be heat-sensitive or difficult for reliable adhesion.
There is no universal duration for every assembly. Run the representative installation until the monitored temperatures stabilize under the intended worst-case operating mode, then evaluate the results using the relevant product and project limits.
Send the application, drawing, available dimensions, strip model or specification, voltage, watts per metre, run length, mounting method, diffuser requirement, environment, ambient condition, operating schedule, target market, quantity range and required documents.
Reliable linear lighting comes from coordinating electrical, thermal, mechanical and optical decisions. Select the strip and aluminum profile together, build a representative sample and verify the real installation condition instead of treating the profile as a decorative cover added at the end.
