COB is usually the better LED strip when the illuminated line is visible and visual continuity is the priority. Its densely arranged chips and continuous phosphor layer can create a smoother line with less visible dotting, especially in shallow profiles or at short viewing distances.
SMD is often the better choice when a project needs a wider range of outputs, LED packages, color configurations, control options or price levels. With the right LED pitch, profile depth and diffuser, an SMD strip can also produce a highly uniform result.
Neither technology is automatically brighter, more efficient, cooler or longer-lasting. Those results depend on the complete specification: power per metre, LED efficacy, PCB copper, current design, thermal path, binning, driver compatibility, installation profile and operating environment.
The professional question is therefore not “Is COB better than SMD?” It is:
Which construction delivers the required appearance, photometric performance, control system and service life in the actual installation?

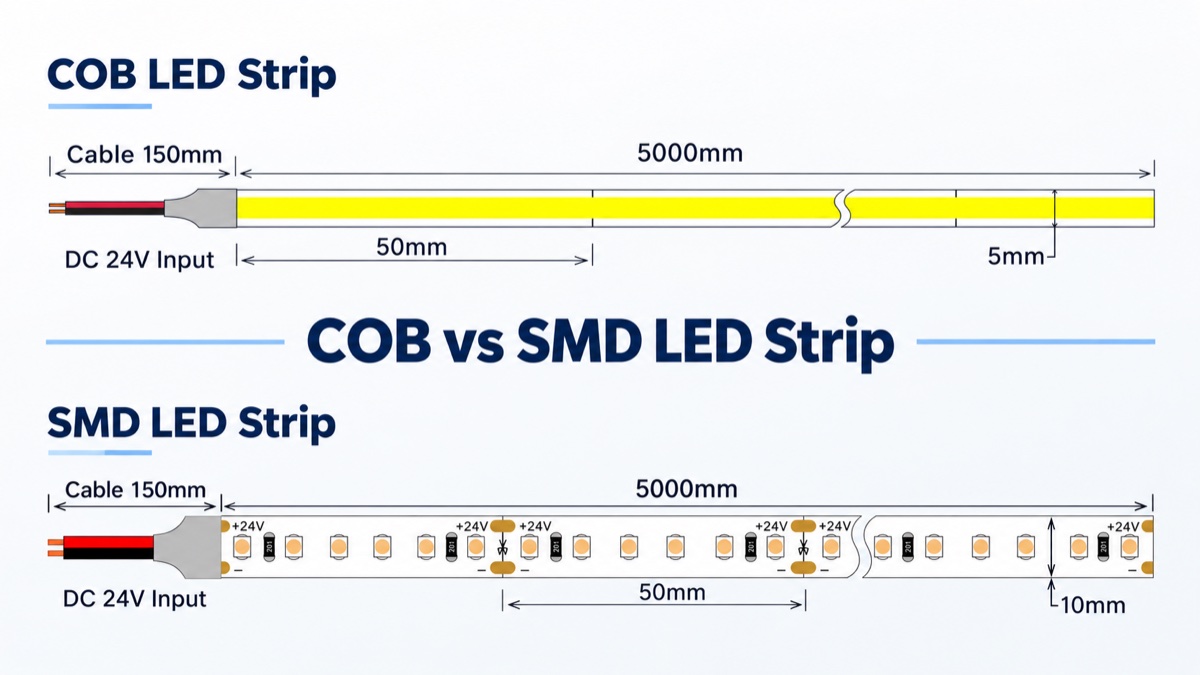

An SMD LED strip uses individually packaged LEDs mounted onto a flexible printed circuit board. Each LED package is a separate light source, so the distance between LEDs, commonly called LED pitch, strongly affects whether dots can be seen through the diffuser.
A COB LED strip mounts many small LED dies closely along the flexible circuit and covers them with a continuous phosphor or encapsulation layer. The emitting area is therefore denser and more continuous, reducing the bright-point and dark-gap pattern associated with lower-density SMD strips.
This construction difference changes the optical appearance, but it does not remove the need to evaluate electrical and thermal performance.
| Selection factor | COB LED strip | SMD LED strip |
|---|---|---|
| Visible light line | Naturally smoother with fewer visible dots | Depends heavily on LED pitch, profile depth and diffuser |
| Shallow aluminum profiles | Often easier to make visually uniform | May require higher LED density, more distance to the diffuser or a more diffusing cover |
| Product variety | Increasing, but model-dependent | Usually broader across white, RGB, RGBW, tunable-white and pixel-control formats |
| Optical control | Continuous-looking output is the main advantage | Package and density choices allow many output and beam configurations |
| Efficiency | Must be checked on the actual datasheet | Must be checked on the actual datasheet |
| Thermal management | Aluminum mounting is still important | Aluminum mounting is still important |
| Cutting interval | Depends on circuit voltage and segment design | Depends on circuit voltage and segment design |
| Repair and replacement | Segment replacement may be less visually forgiving if bins differ | Discrete components may be easier to inspect, but field repair is still usually segment replacement |
| Best-fit applications | Direct-view lines, shallow channels, cabinetry, display shelves and premium decorative details | Indirect coves, high-output linear systems, multi-color systems and projects needing broader specifications |
No. COB substantially reduces visible points, but “dot-free” is a system result rather than a label on the reel.
The final appearance depends on:
the distance between the strip and diffuser;
diffuser transmission and diffusion;
profile depth and internal reflectance;
viewing distance and viewing angle;
LED-strip power and emitting width;
surface reflection, especially glossy stone, glass or metal;
dimming level and camera exposure.
A strip that looks perfectly continuous inside a sample box may reveal variations when reflected from a polished counter. For premium projects, evaluate the strip, profile and diffuser as one luminaire-like assembly under the actual viewing conditions.
Not necessarily. COB describes a packaging and assembly approach; it is not a lumen or efficacy rating.
Compare actual, measured values for the proposed model:
lumens per metre;
watts per metre;
lumens per watt;
maintained output at operating temperature;
CCT and color tolerance;
CRI, and where relevant R9 or TM-30 data;
test conditions and measurement tolerance.
A high-quality SMD strip can outperform a lower-output COB strip, and the reverse can also be true. Buyers should avoid comparing “LEDs per metre” or “chips per metre” as if either number directly guaranteed useful light output.
COB and SMD can both be designed for good color quality. The technology name alone does not guarantee high CRI or consistent color.
For hotels, retail displays, furniture lighting and architectural projects, ask for more than a headline CRI value. A practical review may include:
CRI Ra for general color rendering;
R9 when saturated red rendering matters;
CCT tolerance and color binning;
SDCM or MacAdam-step tolerance between production batches;
consistency at full output and at the intended dimming level;
a physical sample viewed beside the specified finishes and materials.
For repeat orders, color-bin control can be more important than whether the strip is COB or SMD. Two reels with the same nominal 3000 K label may still appear different when installed in one continuous line if the color tolerances are not controlled.
There is no universal answer. Temperature is driven by electrical load, efficacy, PCB construction, mounting surface, ambient temperature and airflow.
Both COB and SMD strips convert part of their electrical power into heat. If that heat cannot leave the flexible PCB, LED junction temperature rises, which can accelerate lumen depreciation, color shift, adhesive failure and component stress.
An aluminum profile should therefore be selected for thermal as well as visual reasons. The profile must suit the strip width, power density, mounting orientation and ambient conditions. A narrow decorative profile is not automatically an adequate heat sink for a high-power strip.
For critical projects, approve the assembly only after measuring stabilized temperatures in the intended profile and installation cavity—not while the strip is briefly operated loose on a workbench.
COB is often the safer optical choice when the profile is shallow and the diffuser is close to the emitting surface. Its dense emitting line needs less mixing distance to hide individual light points.
However, SMD can still work well if the design uses:
a sufficiently high LED density;
a small LED pitch;
a diffuser with appropriate diffusion;
enough distance between LEDs and cover;
an angled or indirect light path.
The correct way to specify a dot-free result is not simply to write “COB.” State the profile, diffuser, viewing distance and acceptance criterion, then approve a representative sample.
Long-run performance depends more on the circuit than on the package type. The important factors are voltage, watts per metre, PCB resistance, copper weight, feed-cable size and injection layout.
For equal power, current is calculated as:
Current = Power ÷ Voltage
Raising the system voltage reduces current for the same power, which can reduce voltage drop in the feed conductors and strip traces. But maximum feed length should never be assumed from voltage alone. It must be checked against the exact product data and the acceptable brightness or color difference from one end to the other.
For longer installations, designers may divide the run into shorter electrically fed sections, feed from both ends where the product and driver arrangement permit it, or add properly sized parallel power feeds. The wiring topology, protective devices and controller limits must be reviewed as part of the system.
Both can be dimmed when the strip, driver and control interface are compatible. The visible result depends on the entire control chain.
Before approval, check:
constant-voltage compatibility;
PWM frequency and possible camera flicker;
minimum stable dimming level;
driver and controller current capacity;
RGB, RGBW or tunable-white channel requirements;
DALI, 0/1–10 V, DMX or other project-interface requirements;
behavior after power interruption;
synchronization across multiple drivers or controllers.
For hospitality, broadcast, retail video and content-creation spaces, test the system with the actual camera frame rates and dimming levels. A strip can appear stable to the eye while producing bands or flicker on camera.
Test COB and SMD samples under controlled, identical conditions. Use the same nominal CCT, similar measured output, the intended aluminum profile and diffuser, the same driver type, and the same exposure when taking photographs.
A useful approval procedure includes:
Inspecting the bare strip at full and reduced output.
Installing both samples in the intended profile.
Viewing them directly and through relevant reflections.
Measuring input power and stabilized profile temperature.
Checking start-to-end brightness and color on the planned run length.
Testing the selected driver and dimming controls.
Recording the approved model, CCT/bin, PCB width, voltage, power, cut length and waterproof construction.
This process prevents a visually attractive sample from being approved without confirming the electrical and installation requirements needed for production.
the light line is directly visible;
the profile is shallow;
the viewing distance is short;
dot-free appearance is a key acceptance requirement;
the project includes cabinets, shelves, mirrors, handrails or decorative lines;
reflections may reveal individual LED points.
the source is concealed in a deep indirect cove;
the specification requires a particular LED package or a broad output range;
RGB, RGBW, tunable-white or pixel-control choices drive the design;
multiple price/performance levels are needed for a product program;
an existing approved SMD specification must be matched;
the selected SMD density, profile and diffuser already meet the uniformity requirement.
To receive a technically useful quotation, send the following project information:
application and installation location;
direct-view or indirect-view requirement;
total run length and length of each continuous section;
supply voltage and control system;
target lumens per metre or illuminance objective;
watts-per-metre limit;
CCT, CRI and color-tolerance requirement;
indoor, damp-area or outdoor environment;
required ingress protection for the exact installation;
profile dimensions, diffuser type and available mounting depth;
cutting-unit and cable-exit requirements;
dimming interface and minimum dimming level;
destination market and project-specific compliance requirements;
sample-approval and batch-consistency requirements.
Certification, IP rating, dimensions, cut length, electrical load and other claims must be confirmed for the exact model being quoted. A statement that applies to one LED-strip model should not be assumed to cover an entire product family.
No. COB is usually preferred for a smooth visible line, while SMD often offers broader output, package, color-control and cost options. The correct choice depends on the complete project specification.
Yes. A high-density SMD strip can appear uniform when paired with sufficient mixing distance and an appropriate diffuser. The result should be tested in the specified profile.
Often yes. The profile supports heat transfer, protects the strip, improves mounting and creates the finished optical assembly. Its thermal suitability must match the strip power and installation environment.
COB is attractive where customers see the illuminated line or its reflection. SMD may be preferable when higher output, specific optics or a wider choice of color configurations is required. Color quality and bin consistency should be evaluated for either type.
COB often suits visible decorative details and shallow profiles. SMD remains a strong choice for concealed coves, higher-output systems and projects requiring specialized controls. Mock up the actual detail before final approval.
Not automatically. Cutting interval is determined by circuit layout, voltage and segment design. Confirm the value on the datasheet for the exact model.
They may use the same type of constant-voltage driver when voltage, total load, control method and current capacity are compatible. Confirm the exact strip and driver combination rather than relying only on the labels COB or SMD.
Choose COB when smooth direct-view appearance is the decisive requirement. Choose SMD when specification flexibility, specialized color/control options, established project matching or a wider price-performance range matters more.
For a dependable commercial installation, approve the complete system: LED strip, driver, controls, wiring, aluminum profile, diffuser, thermal conditions and mounting detail. The best strip is the one that continues to meet the visual and technical brief after it is installed—not the one with the most attractive technology label.
