Direct answer: Even LED backlighting for signs and displays is a system-design problem, not a strip-only choice. Confirm the panel depth, diffuser or face material, LED spacing, voltage, feed points, heat path, control method and service access together. A brighter strip cannot compensate for poor geometry or an unsuitable installation. Approve a representative assembly before production.

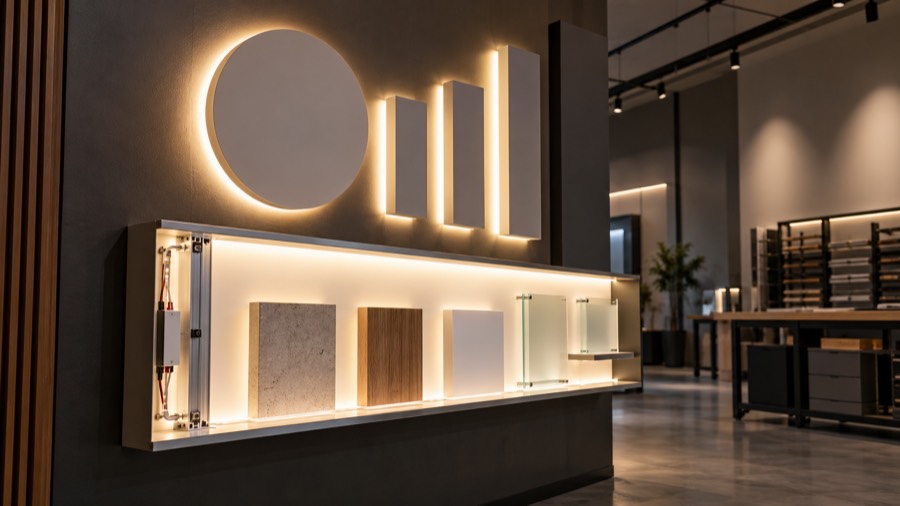

This guide is for sign makers, retail-fixture manufacturers, exhibition contractors, lighting designers, electrical installers, distributors and procurement teams specifying low-voltage LED strip for dimensional letters, shallow sign boxes, display panels and branded interiors. The goal is to reduce dark zones, visible hotspots, colour inconsistency and difficult maintenance.
Record whether the light must pass through acrylic, polycarbonate, fabric, a translucent film, a shelf panel or an open letter face. Surface transmission and diffusion affect the required mounting distance and optical layout. Do not compare strips only by watts per metre before defining the face material.
Measure the usable depth from the LED mounting plane to the illuminated face. Note returns, ribs, screws, cable channels and corners that may block light. A narrow box may need a different strip arrangement from a deeper cabinet even when both use the same face material.
Uniformity depends on the relationship between LED pitch, mounting distance, beam distribution, diffuser transmission and the reflectance of the interior. If the strip is too close to a translucent face, individual points may remain visible. If it is too far away or too weak for the depth, the centre can look brighter than the edges.
Plan the layout as a repeatable grid or line pattern. Keep corner spacing consistent, avoid placing a run directly behind a structural obstruction and allow enough room for the cable entry. A simple drawing with the face, LED lines, spacing and feed direction is more useful than a generic product photograph.
Dimensional letters, shallow light boxes and open display panels do not distribute light in the same way. Narrow letters may need short, carefully oriented runs, while a broad panel may need parallel lines and a defined edge margin. Curved or irregular shapes require a drawing that identifies bend direction, minimum radius and connector position.
For a cabinet or retail display, the viewing angle may change as people walk past. Check the front, side and oblique views. For a logo or sign face, inspect the counters and narrow strokes where a small spacing error can create a dark patch. The sample should represent the most difficult letter or panel, not only the easiest section.
Flexible LED strip can suit shallow channels, sign returns and serviceable display details. COB strip can be considered when the visible line must appear visually continuous at close viewing distances. Silicone neon flex can be a better fit when the luminous surface itself forms a protected, continuous outline. Compare the complete assembly rather than assuming one construction is universally better.
Review the exact model, colour configuration, cut length and connection method. Leomay’s LED strip product options and digital LED strip options can be used as starting points; final compatibility remains model- and project-specific.
The selected strip voltage must match the compatible driver, controller and wiring architecture. For each sign or display section, list the run length, connected load, feed location, polarity and cable route. Longer runs may require a defined feed strategy and a voltage-drop review. Use the voltage drop and power supply sizing guide for the calculation framework, then verify the exact model data.
Do not infer brightness from wattage alone. Two strips with similar electrical demand can produce different results because of LED package, optics, colour, efficiency, diffuser and thermal conditions. Keep the driver accessible and leave a clear method for testing each zone.
White sign faces, coloured acrylic and printed films can shift the perceived result. Specify the required colour or CCT and, where colour fidelity matters, define the CRI target and sample conditions. Compare the sample behind the intended face material, not on an exposed workbench.
For RGB, RGBW or tunable-white projects, confirm channel count, controller mapping and the required scene behaviour. A multichannel strip may need a different wiring and commissioning plan from a single-colour sign.
Backlighting assemblies need a practical heat path. Check whether the strip is mounted to an aluminium surface, profile, sign frame or finished panel, and whether the mounting method remains secure over the intended service conditions. Avoid sealing a high-load strip into an inaccessible cavity without reviewing heat removal.
Provide access to drivers, connectors and feed points. A layout that looks uniform on day one can become expensive if a failed connection requires dismantling the entire sign. Document the approved strip, profile or mounting surface, connector method and replacement route.
Bright centre and dark edges: the LED plane may be too close to the face, the line spacing may be too wide at the perimeter, or the face may diffuse unevenly. Review geometry before simply increasing power.
Visible dots: the diffuser, depth or LED pitch may not suit the viewing distance. A different optical construction or a revised mounting plane may be more effective than a higher-output strip.
Dark joints and corners: connectors, cut points or structural ribs may interrupt the intended grid. Show joints on the drawing and test the corner detail in the sample.
Colour mismatch between sections: different production versions, mixed CCT selections, heat conditions or control settings can change the appearance. Keep a sample reference and the selected model in the project record.
Early failure or adhesive lift: the mounting surface, heat path, cleaning method or mechanical strain may be unsuitable. Treat mounting and cable relief as part of the lighting specification.
Indoor display work may still involve dust, cleaning fluid or occasional splashes. Outdoor signs add rain, condensation and temperature cycling. Select the protection level for the actual location and verify the complete assembly, including connectors, end caps, cable entries, driver enclosure and mounting method. The LED strip IP ratings guide explains why the strip’s code cannot automatically be extended to every component.
Cutting, joining or drilling can change the protection of the finished system. Treat every field connection as part of the design review.
Decide whether the sign is on/off, dimmable, tunable white, RGB or individually addressable. Confirm the controller, driver interface, channel count, cable topology and commissioning steps before ordering. The control method must be compatible with the strip and power architecture; a protocol name alone does not prove compatibility.
Commission each zone at the intended viewing distance. Check start-up behaviour, low-end dimming, colour matching between sections, connector polarity and any visible shadow from the sign structure.
When a sign family is repeated across stores or locations, keep one controlled record of the approved strip model, colour, spacing, face material, driver arrangement, connector method and installation cross-section. This reduces substitutions that look similar on paper but produce different illumination in the finished sign.
Record what was actually approved, not only what was quoted. If the face material, depth, control system or target market changes, treat the change as a new verification task. This is especially important when local installers cut and reconnect sections on site.
Build the sample with the actual face material, depth, diffuser, mounting method and cable entry.
Use the selected strip model, driver and control method rather than a visually similar substitute.
Inspect centre, edge and corner uniformity from the normal viewing distance.
Record exposure conditions, operating state, approved colour and any spacing change.
Keep the approved sample reference with the drawing and quotation documents.
Sign or display type, illuminated dimensions and face material.
Cross-section showing depth, LED plane, diffuser, returns and obstructions.
Target voltage, colour or CCT, CRI target and control configuration.
LED line spacing, run lengths, feed points, cut points and cable-entry direction.
Indoor, damp or outdoor exposure and cleaning conditions.
Driver, controller, dimming method, channel count and access requirements.
Quantity range, target market and required documentation for the selected model.
Review face material, box depth, LED spacing, beam distribution and mounting position together. Approve a representative assembly instead of relying on strip brightness alone.
No. Uniformity, heat removal, diffuser transmission and viewing distance can matter more than nominal wattage.
No. Depth, face material, internal reflectance and obstructions change the correct layout. Confirm spacing from the actual cross-section.
An aluminium mounting surface or profile can support heat transfer and repeatable installation, but the correct method depends on the model and assembly. Verify it in the sample.
It can be considered when the project needs colour control, provided the controller, channels, driver and wiring are compatible with the selected strip.
No. The strip, connectors, end caps, cable entries, driver enclosure and installation must be evaluated as one system for the actual exposure.
Use the intended face, depth, diffuser, strip, driver and controls. Inspect centre-to-edge uniformity, shadows, colour consistency, heat and service access at the normal viewing distance.
Send the application, drawing, dimensions, face material, voltage, colour or CCT, CRI, spacing, run lengths, control method, exposure, quantity range, target market and required documents.
