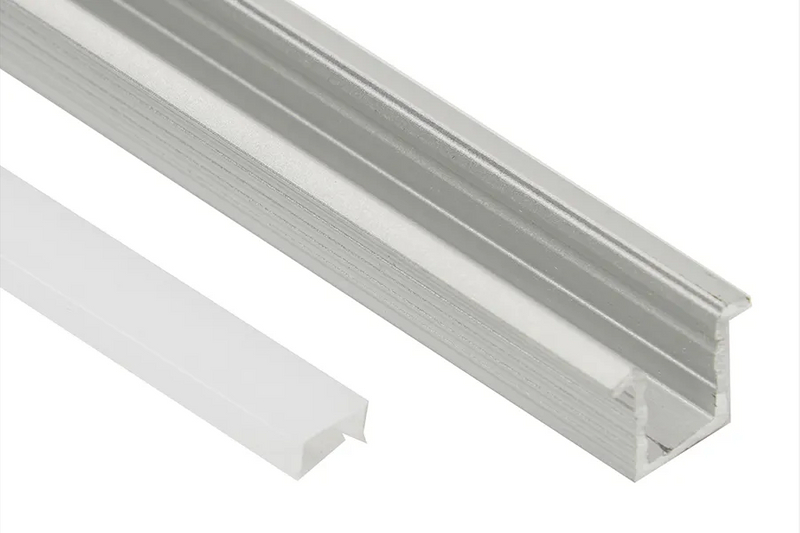

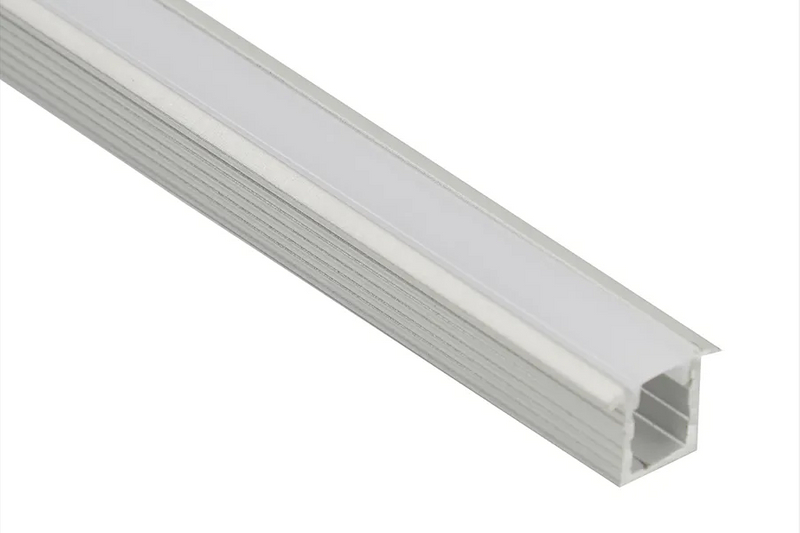

LW-0809E74 Aluminum LED Profile
Direct answer: LW-0809E74 is an aluminum LED profile with an external dimension of W11.3 × H9 mm. Use this dimension as an initial screening point, then confirm the selected LED strip width, diffuser and accessory fit, installation detail, cable routing and maintenance access against the project drawing.
What to Confirm Before Selection
Available width and height in the installation detail
Selected LED strip width and the required light effect

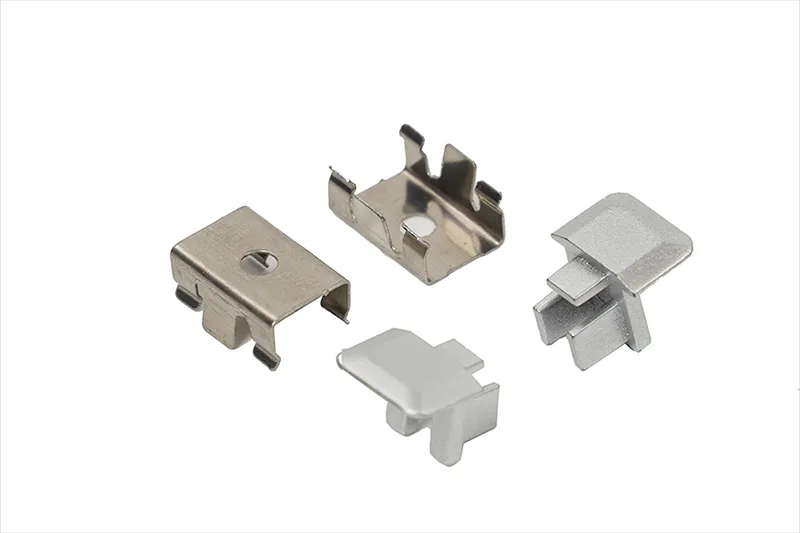

Diffuser, end-cap and mounting-accessory requirements
Cable entry, driver location and maintenance access
Indoor or outdoor environment and target-market documentation requirements
Compatibility Review
The external profile dimension alone does not confirm a complete assembly. Review the LED strip, diffuser, accessories, wiring route and installation section together before model selection.
Product Specification
| Item No. | LW-0809E74 |

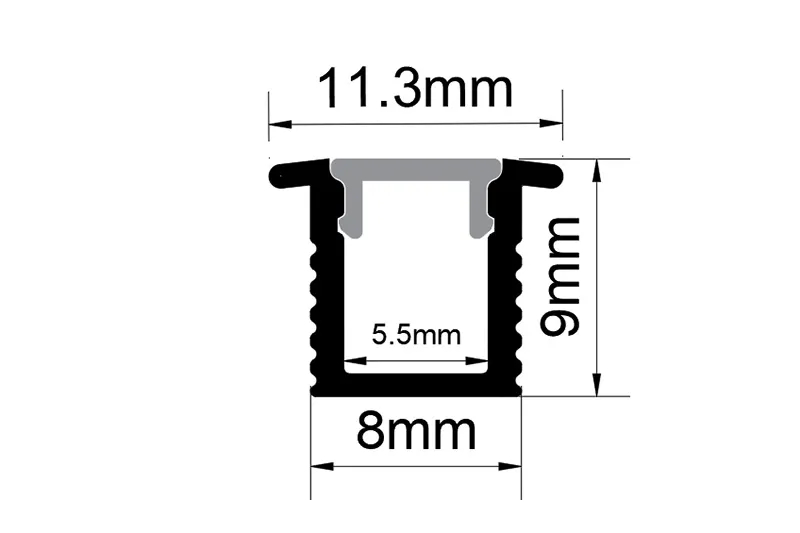

| External Dimension | W11.3*H9mm |





Aluminum Profile Samples Display Box

Installation

What to Send for Project Review
Send the model reference LW-0809E74, installation drawing, available section dimensions, selected LED strip width, required light effect, cable route, project environment, quantity range, target market and any required documentation. Leomay can then review the relevant product configuration.
Frequently Asked Questions
What is the external dimension of LW-0809E74?
The product record lists an external dimension of W11.3 × H9 mm.
Does the external dimension confirm LED strip compatibility?
No. Confirm the selected LED strip width, diffuser and accessory fit against the actual section and product configuration.
Can LW-0809E74 be selected without an installation drawing?
A drawing or section detail is recommended because the available space, mounting detail, cable route and maintenance access affect product selection.
What should I provide before requesting a quotation or sample review?
Provide the model reference, application, drawing, available dimensions, selected strip width, required light effect, project environment, quantity range, target market and documentation requirements.
Related Selection Guides
Review the recessed linear lighting selection guide, the LED strip and aluminum profile compatibility guide, and the Aluminum LED Profile collection.
