Description
Model NO | LM2835-WN240-24V-20MM双排 |
LED Type | SMD2835 |
Voltage(V) | DC24V |
LED Qty/m | 240LED/M |

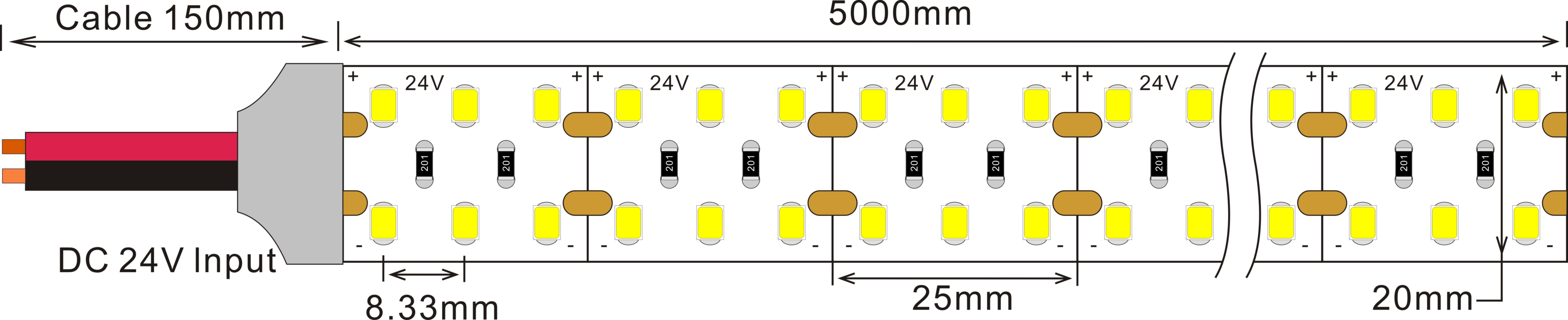

PCB Width | 20MM双排 |
Rated Power(W) | 28.8W/M(Customized power available) |
Luminous Flux | 2700K(RA80) 2822.4Lm/m，3000K(RA80) 2880Lm/m 4000K(RA80) 3024Lm/m，6000K(RA80) 3110.4Lm/m |
Cutting Unit | 25MM (6LEDs/cutting) |
IP Rate | IP20/IP54/IP65 |
LED Chip Brand | SANAN, EPISTAR, LUMILEDS, SAMSUNG |
LEDs Material | Double high thick 99.99% Gold Wire, Copper holder |
LEDs Supplier | HONGLITRONIC, LUMILEDS, SAMSUNG |
CRI(RA>) | 80+, 90+ |
Color Tempertature | 2200K~7000K,Red, Blue, Green, Yellow, Pink, Orange |
Package(m/roll) | 5M, 10M, 50M, 50M |
Certificate | UL, CE, FCC, ROHS, UKCA , CB, ISO9001 |
Warranty | 3~5 Years |
